YouTube - Notes - Full video and playlist - Vectors and the Geometry of Space playlist

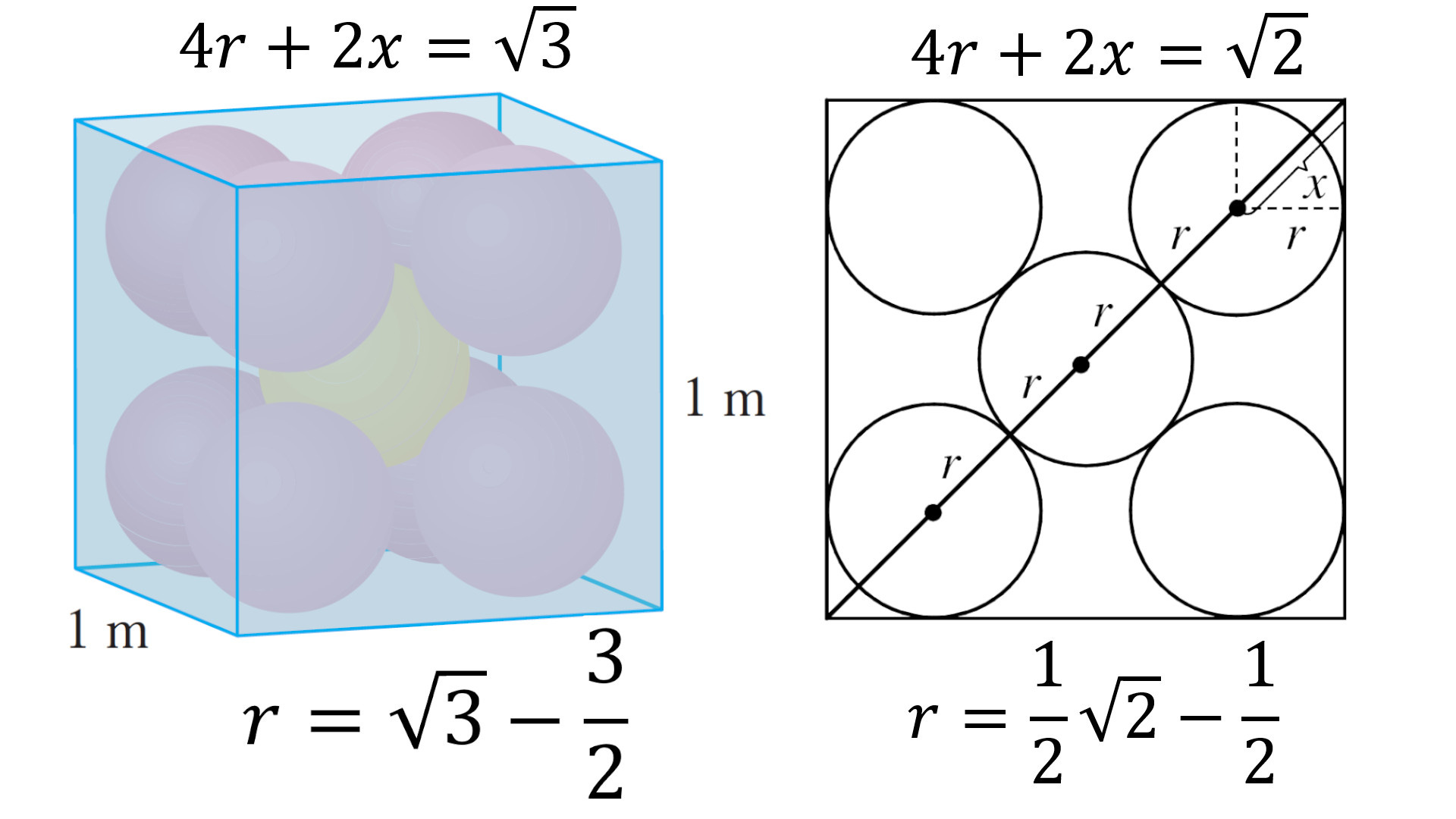

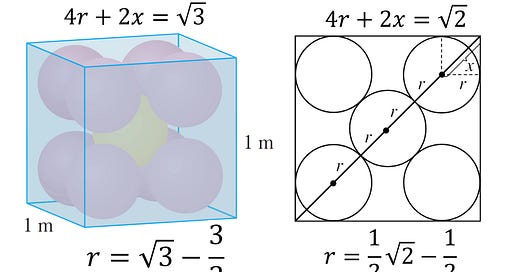

In this video I determine the radius of 9 balls that are tightly packed inside a box. I first solve the 2D case by solving for the radius of 5 circles tightly packed inside a square. The strategy involves first determining the diagonal, using the Pythagorean Theorem in 2D and 3D, and then showing that the diagonal is also equal to 2r + 4x, where r is the radius and x is the distance from the center to the corner. From here we can use basic algebra to solve for the radius.
Timestamps:
Problem 1: Tightly packed balls in a box: 0:00
Hint: Use analogy problem solving strategy: 1:06
Solution: Solving the 2D case first: 2:25
Diagonal of a square is 2^(1/2): 4:11
Diagonal = 4r and 2 x: 4:59
Radius solved for the 2D case: 6:56
Solving the 3D case: Diagonal is 3^(1/3): 7:07
Drawing our balls in 3D: 9:14
Diagonal = 4r + 2x: 11:48
Radius = 3^(1/2) - 3/2: 15:27
Problems Plus 1: Tightly Packed Balls in a Box (and Tightly Packed Circles in a Square)
